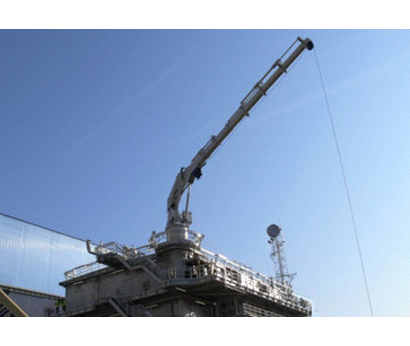

Foldable Knuckle Boom Cranes

  • Long-life surface treatment: corrosion protection
  • Low / high temperature operations
  • Return oil utilisation
  • Continuous slewing system
  • Power link system
PK Range
Outreach 4.1m upto 21.9m
Lifting Moment (kNm) 174.1 upto 730.5 (max outreach)
PFM Range
Outreach 7.5m upto 21.3m
Lifting Moment (kNm) 1022 upto 2835 (max outreach)

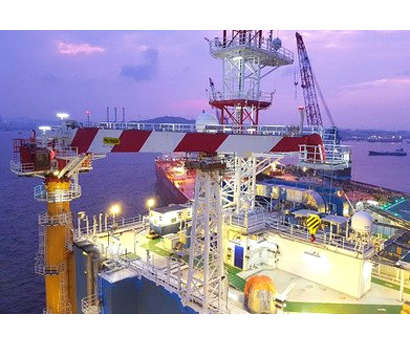

Stiff Boom Cranes

Application

  • Shipboard cranes
  • Ship to Ship cranes
  • Hose handling cranes
  • Provision cranes

Features

  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated Electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
PSM Range
Outreach 7m upto 21m
Lifting Moment (kNm) 1104 upto 2625
DK Range
Outreach 27.5m upto 55m
Lifting Moment (kNm) 2200 upto 30000

Telescopic Boom Cranes

RANGE FROM 140 UP TO 12000 KNM

  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Electro hydraulic drive
  • Continuous slewing
  • Low / high temperature operations
PTM Range
Outreach 6.5m upto 26m
Lifting Moment (kNm) 133 upto 2750 (max outreach)
DKT Range
Outreach 30m upto 43m
Lifting Moment (kNm) 2200 upto 12000(max outreach)

Knuckle Boom Cranes

RANGE FROM 130 UP TO 30000 KNM

  • Long-life surface treatment: corrosion protection
  • Operation from control platform on crane
  • Integrated Electro hydraulic drive / HPU
  • Continuous slewing
  • Low / high temperature operations
PKM Range
Outreach 8m upto 20m
Lifting Moment (kNm) 132 upto 1440 (max outreach)
DKF Range
Outreach 27.5m upto 50m
Lifting Moment (kNm) 2200 upto 30000

Travelling Cranes

RANGE FROM 1 UP TO 600 T

  • Monorail provision cranes
  • Engine room cranes
  • Cargo rail cranes
  • Travelling deck cranes
  • Service cranes
Range Category Lifting Capacity(t) Span(m) Dear Weight(t)
TKO Overhead traveling crane 1-600 5-50 5-200
TKU Underslung traveling crane 1-200 5-30 5-50
TKG Gantry traveling crane 1-600 5-50 10-600
TKSG Semi-gantry traveling crane 1-600 5-50 1-400

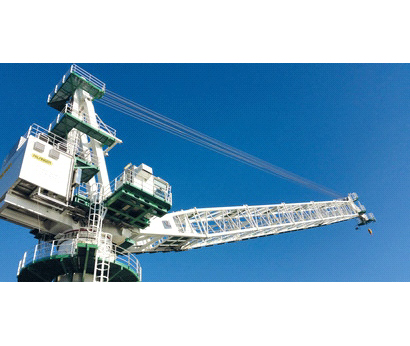

Wire Luffing Lattice Boom Cranes

RANGE FROM 4000 UP TO 30000 KNM

  • Deck cranes
  • Ship to Ship cranes
DKW Range
Outreach 35m upto 80m
Lifting Moment(kNm) 4000 upto 30000
